SINOHI Chain Scraper Conveyor: Siv tau & ntau yam kev tuav
Khoom feature
Zog Txuag Tsim
Plate roller chains hloov zawv zawg kev sib txhuam nrog dov kev sib txhuam, txo qis zog noj thiab cov nqi khiav lag luam.
Ntev -Kev xa tawm
Ib chav tsev tuaj yeem thauj cov ntaub ntawv mus txog 100 meters, ua kom yooj yim cog layouts thiab txo cov ntsiab lus hloov mus.
Siab Durability
Hnav- cov saw hlau tiv taus thiab cov hlua khi ua kom lub neej ua haujlwm ntev, txo qis txij nkawm thiab sijhawm poob qis.
Tsawg-Kev ua haujlwm nrov nrov
Kev ua haujlwm du du ua kom cov khoom ruaj khov thiab ua haujlwm ntsiag to, zoo tagnrho rau lub suab nrov- qhov chaw muaj kev cuam tshuam.
Fully Sealed & Flexible
Cov qauv tsim los tiv thaiv plua plav tawm. Ntau qhov inlets thiab qhov hluav taws xob tso cai rau kev sib xyaw ua ke rau hauv cov kab ntau lawm.
Multi-Point Feeding & Discharge
Thauj khoom thiab tshem tawm cov ntaub ntawv ntawm ntau qhov chaw raws txoj kev conveyor, muab kev tswj xyuas meej ntawm koj cov khoom ntws yam tsis xav tau cov khoom siv ntxiv.

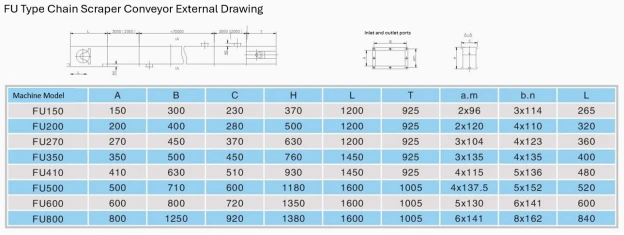

Kev qhia tshwj xeeb: FU Series Chain Scraper Conveyor
Hauv qab no yog cov ntaub ntawv qhia ntxaws ntxaws rau peb FU series. Siv cov lus no los xaiv tus qauv zoo raws li qhov koj xav tau conveying muaj peev xwm thiab cov khoom particle loj.
| Qauv | Qhov dav dav (mm) | Optimal Particle Loj (mm) | Max Particle Loj (tsawg dua lossis sib npaug li 10%) (mm) | Kev xa tawm muaj peev xwm (m³ / h) ntawm qhov sib txawv |
| FU150 | 150 | Tsawg dua los yog sib npaug li 4 | Tsawg dua los yog sib npaug li 8 | 8 ~ 25 |
| FU200 | 200 | Tsawg dua los yog sib npaug li 5 | Tsawg dua los yog sib npaug li 10 | 16 ~ 58 |
| FU270 | 270 | Tsawg dua los yog sib npaug li 7 | Tsawg dua los yog sib npaug li 14 | 25 ~ 110 |
| FU350 | 350 | Tsawg dua los yog sib npaug li 9 | Tsawg dua los yog sib npaug li 18 | 40 ~ 180 |
| FU410 | 410 | Tsawg dua los yog sib npaug 11 | Tsawg dua los yog sib npaug li 21 | 65 ~ 240 |
| FU500 | 500 | Tsawg dua lossis sib npaug li 13 | Tsawg dua los yog sib npaug li 25 | 100 ~ 360 |
| FU600 | 600 | Tsawg dua los yog sib npaug li 15 | Tsawg dua los yog sib npaug li 30 | 140 ~ 500 |
| FU800 | 800 | Tsawg dua los yog sib npaug li 18 | Tsawg dua lossis sib npaug li 36 | 280 ~ 700 |
Kev Pabcuam & Kev cog lus zoo: Ua rau tus qauv, txhawb nqa los ntawm kev txhawb nqa
- 24/7 Teb ceev ceev:Peb pab neeg txhawb nqa yeej ib txwm npaj los pab nrog cov lus nug.
- Kev them nyiaj yug tag nrho Lifecycle:Peb muab kev cob qhia kev teeb tsa, commissioning, thiab kev cob qhia tus neeg ua haujlwm tu.
- Kev txhim kho txuas ntxiv:Peb muab kev hloov kho dua tshiab kom ntseeg tau tias koj cov cuab yeej tswj hwm kev ua haujlwm siab tshaj nws lub neej ua haujlwm ntev.
FAQ
Q: Dab tsi ntawm cov ntaub ntawv no tuaj yeem siv tau?
A: Nws yog tsim los pub dawb- cov hmoov ntws, granules, thiab pob me me. Feem ntau siv xws li cement, thee, grain, thiab tshuaj chiv.
Q: Ntev npaum li cas ib chav tsev tuaj yeem xa cov khoom?
A: Ib chav tsev muaj peev xwm tswj tau kab rov tav conveying nrug txog li 100 meters. Qhov ntev no -span muaj peev xwm pab ua kom yooj yim cog layouts los ntawm kev txo qhov xav tau rau ntau lub ntsiab lus hloov.
Q: Yuav tsum muaj kev saib xyuas dab tsi?
A: Kev kho yog ncaj nraim. Cov dej num tseem ceeb suav nrog kev hloov kho tsis tu ncua rau cov saw hlau thiab kev tshuaj xyuas ib ntus ntawm kev hnav ntawm cov scrapers thiab trough liners. Lub phaj roller saw tsim feem ntau yuav tsum tsis tshua muaj kev saib xyuas ntau dua li cov zawv zawg scrapers.
Q: Puas yog kev teeb tsa nyuaj?
A: Tsis yog. Lub conveyor nta ib qho qauv, compact tsim uas yooj yim installation. Peb muab cov kev taw qhia txog kev teeb tsa, suav nrog cov duab kos kom ntxaws thiab ntawm - qhov chaw txhawb nqa yog tias xav tau, txhawm rau ua kom cov txheej txheem teeb tsa tau zoo.
Q: Cov conveyor no puas tuaj yeem ua rau inclined conveying?
A: Yog, tab sis tsuas yog rau me ntsis inclines. Lub kaum sab xis siab tshaj plaws yog tsawg dua lossis sib npaug li 10 degree. Rau cov kaum sab xis, peb xav kom peb lub thoob of elevator lossis lwm yam khoom tshwj xeeb nqa.
Q: Lub conveyor puas tsim cov hmoov av ntau?
A: Tsis yog. Lub FU series nta ib qho kev kaw tag nrho trough tsim. Qhov no tiv thaiv cov plua plav tawm thiab cov khoom txeej thaum lub sijhawm ua haujlwm, ua kom lub chaw ua haujlwm huv thiab ib puag ncig zoo.
