Khoom Feature
Hnyav -Lub luag haujlwm Impact Resistance
Kev puas tsuaj- cov lauj kaub hlau uas tsis muaj zog nqus qhov poob siab los ntawm cov khib nyiab ntse, tiv thaiv deformation hauv qhov hnyav MSW ib puag ncig.
Leak-Cov ntawv pov thawj Overlapping Design
Muab kaw, cov lauj kaub sib tshooj muaj cov nplua nuj thiab cov kua qaub, ua kom cov nroj tsuag hauv pem teb huv si thiab nyab xeeb.
Precision Feed Control
Kev sib hloov ceev tsav kom ntseeg tau tias cov khoom ntws zoo ib yam, tshem tawm kev thauj khoom nce siab thiab tiv thaiv cov dej ntws qis.
Tsawg-Txhim kho & Zog txuag
Cov khoom txuas sab nraud tso cai rau kev pabcuam sai, thaum siab -torque drives txo qis kev siv hluav taws xob thiab cov nqi ua haujlwm.
Kev Taw Qhia Kev Xaiv
Thaum qhov chaw tso cai, xaiv qhov dav dua nrog kev ua haujlwm qeeb dua. Qhov no ua kom lub txaj khoom ruaj khov thiab txo qhov hnav ntawm lub apron pans.
- Blocky / Granular Khoom:Teem sab phaj qhov siab rau 1.1-1.2x qhov nruab nrab cov ntaub ntawv txheej qhov siab.
- Khoom siv khib nyiab / Straw / mos:Nruab tag nrho -ntev phau ntawv qhia chutes los tiv thaiv kev nchuav; siv sab phaj feem ntau rau kev sib tw.
Base muaj peev xwm xam ntawm kab rov tav layouts. Rau cov seem inclined, siv cov kev kho hauv qab no:
| Lub kaum ntse ntse | Capacity Coefficient |
| 0℃- 10 degree | 1.0 |
| 10℃- 30 degree | 0.9 |
| 30℃- 45 degree | 0.8 |
| 45℃- 60 degree | 0.65 |
Kab rov tav fais fab kev ntsuas yuav tsum tau hloov kho rau txoj kab nqes. Siv qhov xwm txheej(100 - degree) / 100rau qhov kev kwv yees ua ntej lub cev muaj zog, qhov twg yog lub kaum sab xis inclination.
For long conveyors, high-density materials (>1.8 t / m³), lossis siab - daim ntawv thov kub, txo cov kev khiav hauj lwm ceev thiab cov khoom txheej thickness. Ib txwm upsize tus qauv kom muaj kev nyab xeeb margin.
Rau Z-zoo li tus (inclined) configurations, tswj cov nram qab no tig radii los xyuas kom meej cov saw zoo sib xws:
- Upper Radius (R): 5–10 m
- Lower Radius (r): 3–5 m
Cov qauv hauv ib puag ncig yuav tsum muaj xws li ntxuav cov chaw nres nkoj ntawm tus Tsov tus tw kawg thiab cov ntu nkhaus. Xyuas kom cov haujlwm hauv pej xeem muab kev tshem tawm txaus rau cov hmoov tshauv thiab cov khib nyiab tshem tawm.
Kab rov tav kev npaj hom (qhib hom)

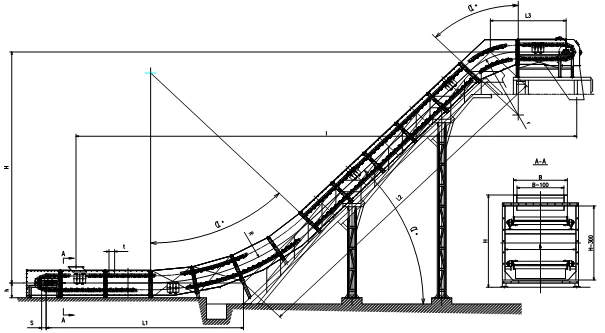

Z- hom kev npaj (nrog)
Technical Specifications
Table 1: Sib Nqus Series
| Qauv | Qhov dav dav (B) | Max peev xwm (m³ / h) | Center Qhov siab (h) | Profile qhov siab (H) |
| L-400 | 400 hli | 350 | ~ 650 hli | ~ 1350 hli |
| L-500 | 500 hli | 450 | ~ 700 hli | ~ 1450 hli |
| L-630 | 6 30mm | 900 | ~ 800 hli | ~ 1650 hli |
| L-800 | 800 hli | 1450 | ~ 900 hli | ~ 1850 hli |
Table 2: Nruab Nrab/Havy Duty Series
| Qauv | Qhov dav dav (B) | Max peev xwm (m³ / h) | Center Qhov siab (h) | Profile qhov siab (H) |
| M-800 | 800 hli | 700 | ~ 800 hli | ~ 1650 hli |
| M-1000 | 1000 hli | 1150 | ~ 900 hli | ~ 1850 hli |
| M-1200 | 1200 hli | 1700 | ~ 1000 hli | ~ 2000 hli |
- Conveying ceev:0.05 - 1.60 m / s (Lub teeb yuag) / 0.05 - 1.00 m / s (Medium / Heavy)
- Max Inclination Angle:60℃(45℃lossis tsawg dua pom zoo rau kev noj zaub mov ruaj khov)
Table 3: Heavy-Lub Luag Haujlwm Series rau MSW & Cov Khoom Siv Hluav Taws Xob
| Qauv | Qhov dav dav (B) | Max peev xwm (m³ / h) | Lub cev muaj zog (kW) |
| W-1500 | 1500 hli | 220 | 4.0 |
| W-1800 | 1800 hli | 260 | 5.5 |
| W-2000 | 2000 hli | 290 | 5.5 |
| W-2500 | 2500 hli | 360 | 7.5 |
| W-2800 | 2800 hli | 410 | 7.5 |
| W-3000 | 3000 hli | 450 | 7.5 |
- Conveying ceev:0.04 - 0.15 m / s (tsawg ceev, siab torque)
- Toggle Roller Linear Ceev: 0.12 – 0.6 m/s
- Daim ntawv thov:Municipal Solid Waste (MSW), Cov Khoom Siv Hluav Taws Xob / Tshuaj Kho Mob, Straw / Biomass
Table 4: cov khoom tseem ceeb
| Parameter | Specification |
| Main Ncej Khoom | Q345B Carbon Steel (Sandblasted & Epoxy pleev xim rau) |
| Apron Pan Khoom | Manganese Steel (Mn13) / Abrasion-Resistant Steel |
| Chain Hom | Forged Heavy-Lub luag haujlwm Bushing saw |
FAQ
Q: Dab tsi tshwj xeeb ntawm cov khib nyiab no tuaj yeem siv tau?
A: Nws yog tsim rau hnyav MSW (Municipal Solid Waste) ib puag ncig, tuav cov khib nyiab loj hauv tsev, kev lag luam tsis kam, thiab txawm tias muaj kev phom sij / kev kho mob pov tseg. Lub hnyav- lub luag haujlwm sib tshooj ua ke tiv thaiv cov hlau ntse thiab iav los ntawm kev puas tsuaj rau txoj siv.
Q: Dab tsi yog qhov siab tshaj plaws incline lub kaum sab xis rau kev pub noj khib nyiab?
A: Thaum lub tshuab tuaj yeem ua haujlwm txog li 60 degree, peb pom zoo kom khaws lub kaum sab xis hauv qab 45℃rau cov khib nyiab hauv nroog. Qhov no tiv thaiv cov khoom rollback thiab ua kom ruaj khov tus nqi rau downstream shredders.
Q: Yuav ua li cas hloov lub nrawm tsav tiv thaiv cov khoom siv hauv qab?
A: Los ntawm kev kho qhov ceev (0.04-0.15 m / s), koj tuaj yeem tswj cov khoom thickness. Qhov no tshem tawm "surge loading" (tam sim ntawd hnyav cuam tshuam) ntawm koj lub shredder los yog lub cub tawg, ua kom nws lub neej kev pab cuam thiab txo lub cev muaj zog.
Q: Puas yog lub kaw lus kaw los tswj cov ntxhiab tsw thiab plua plav?
A: Yog. Rau khib-rau-Cov nroj tsuag hluav taws xob thiab sab hauv MRFs, peb muab tag nrho "Z-hom" teeb tsa. Cov foob no hauv cov plua plav thiab cov ntxhiab tsw, thiab suav nrog kev ntxuav cov chaw nres nkoj ntawm tus Tsov tus tw kawg kom yooj yim txij nkawm.
Q: Cov conveyor puas tuaj yeem hloov kho rau kuv qhov chaw tsim khoom?
A: Yog lawm. Peb kho qhov dav chute (txog 3000mm), tag nrho ntev, thiab tsav lub zog raws li koj cov kev xav tau tshwj xeeb thiab qhov chaw hneev taw. Tiv tauj peb rau kev cai CAD layout.
